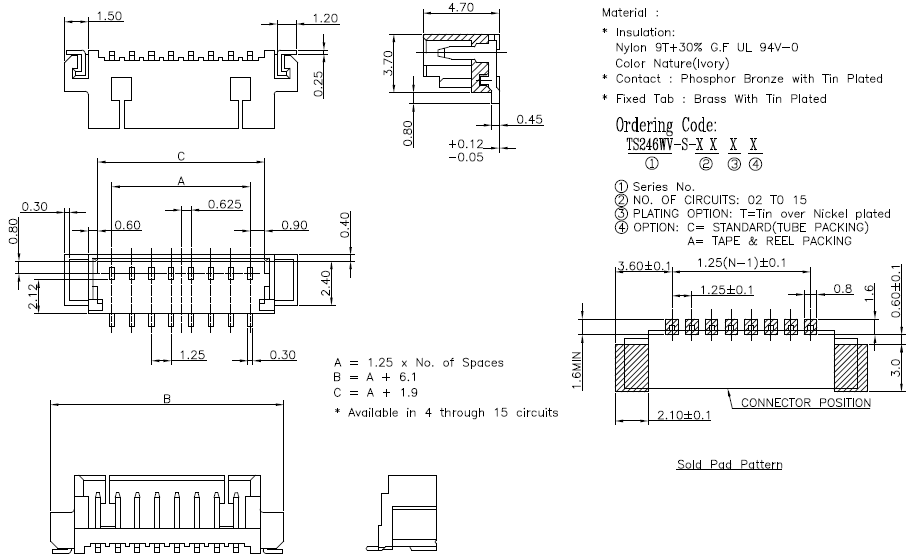

TS246WV-S-XXXX SMT Vertical type 1.25 Wafer
規格Voltage rating: 250V AC/DC. Current rating: 1A AC/DC. Withstanding voltage: 250 VAC for 1 min. Insulation resistance: 100 MΩ Min. Contact resistance: 20 mΩ Max.. Temperature range: -40℃~85℃ Contact: Brass with Tin plated. PIN:2~15PIN 產品規格
|
