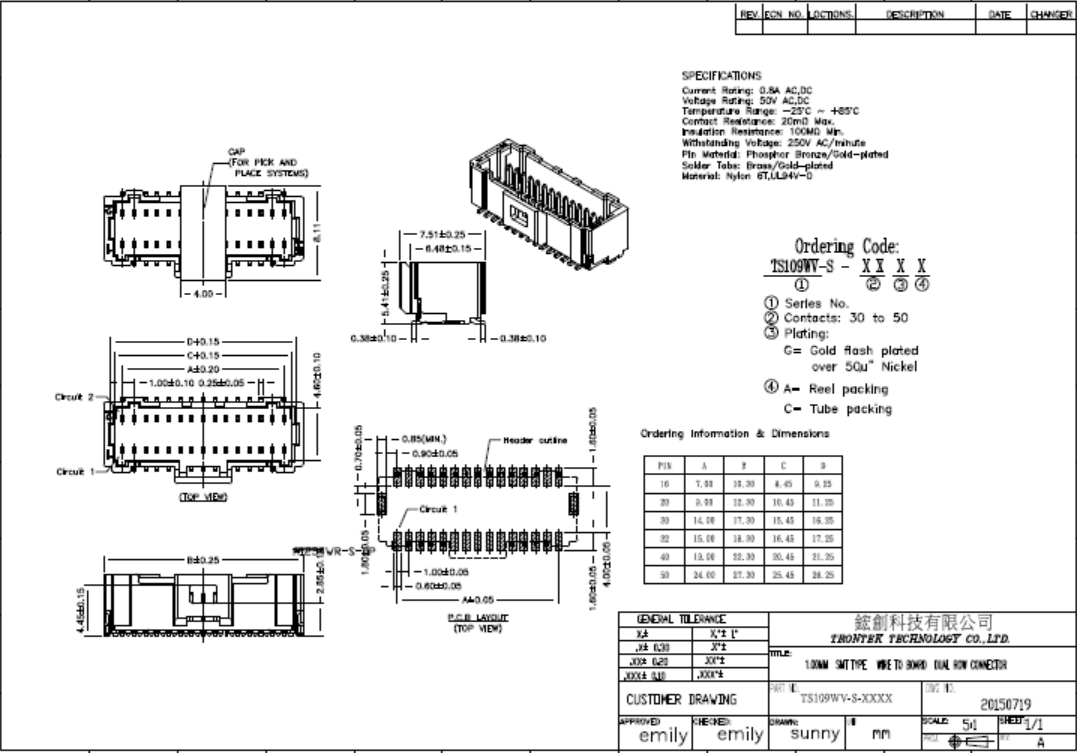

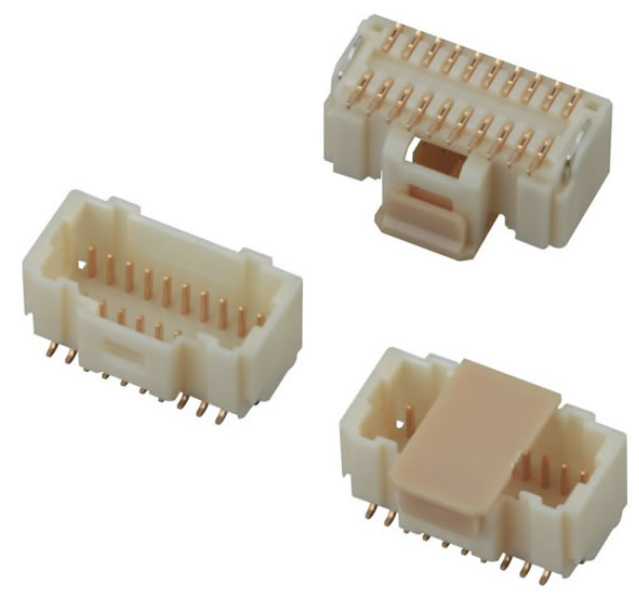

TS109WV-S-XXXX - 1.00MM SMT TYPE WIRE TO BOARD DUAL ROW CONNECTOR
規格Current Rating : 1A AC,DC Voltage Rating : 50V AC,DC Temperature Range : -25 deg C ~+85 deg C Contact Resistance : 20m Omega Max. Insulation Resistance : 100M Omega Min. Withstanding Voltage : 500V AC/minute PIN:16.20.30.32.40.50PIN 產品規格
|
