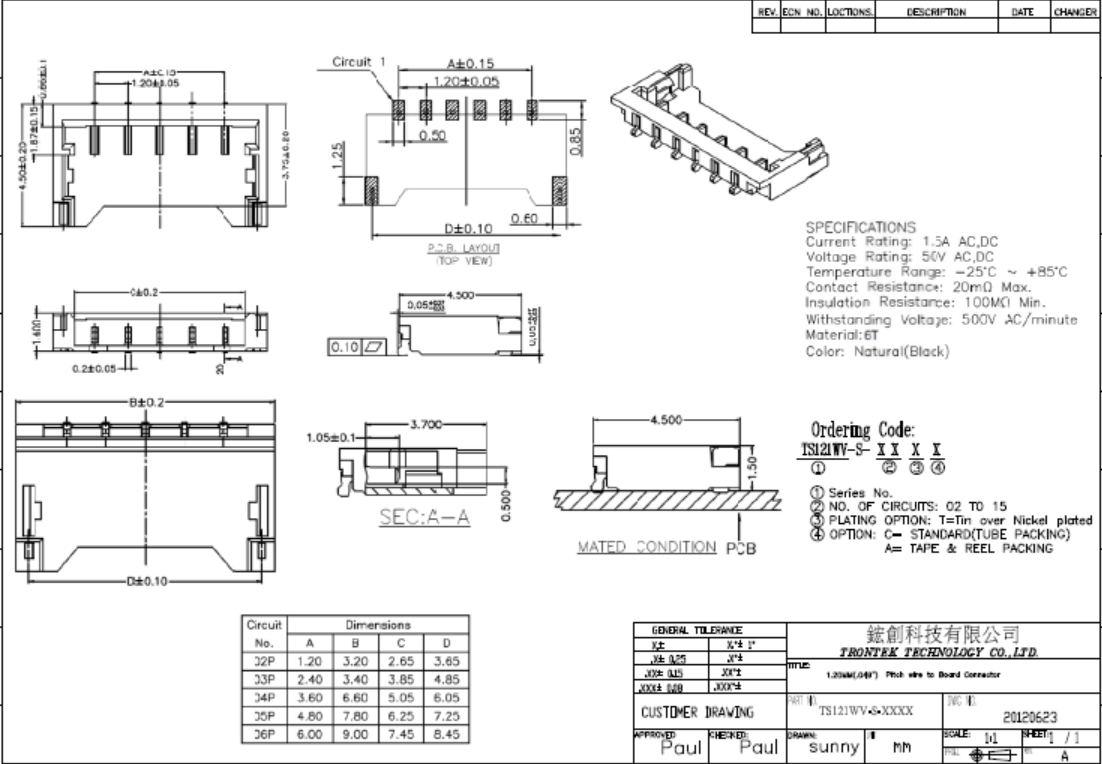

TS121WV-S-XXXX - 1.20mm pitch wire to board connector
規格Current Rating : 1.5A AC,DC Voltage Rating : 50V AC,DC Temperature Range : -25 deg C ~+85 deg C Contact Resistance : 20m Omega Max. Insulation Resistance : 100M Omega Min. Withstanding Voltage : 500V AC/minute PIN:2~6PIN 產品規格
|
