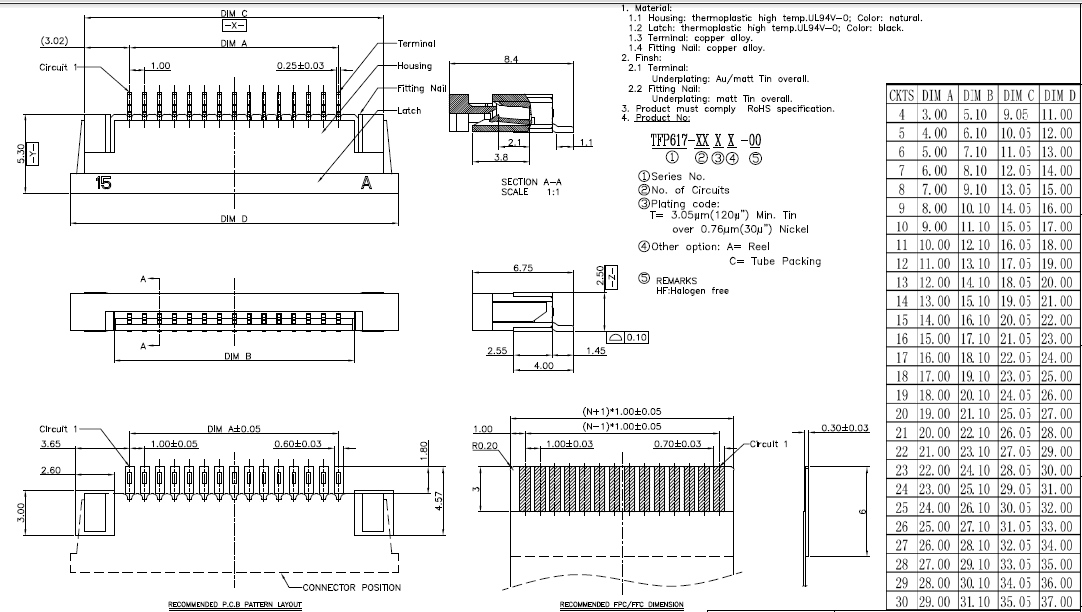

1.0mm Pitch H=2.5 FPC 下接 ZIF RA Lower Type2 SMT CONN ( TFP617Series)
規格Electrical Characteristics: Current rating: 0.5A AC/DC Voltage rating: 50V AC/DC Temperature range: -25~+85℃ Withstand Voltage: 200V AC/Minute Contact Resistance: ≦20mΩ. Insulation resistance: ≧500MΩ. Relative Humidity: 93%+40℃ PIN:4~30PIN 產品規格
