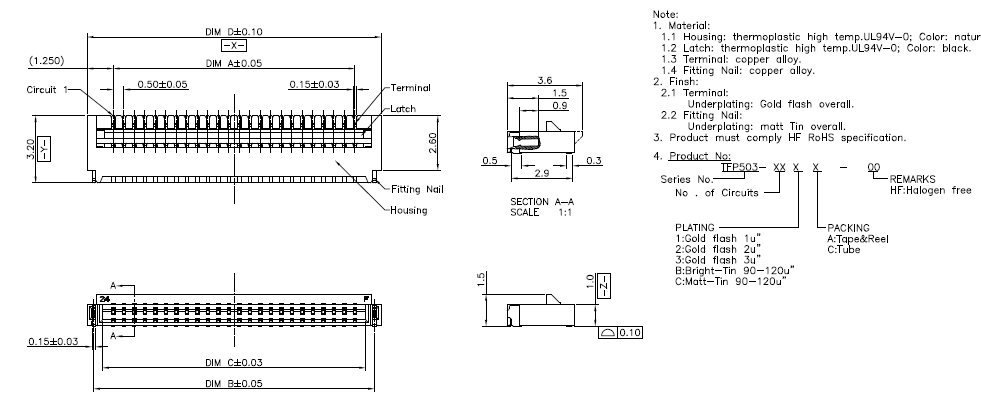

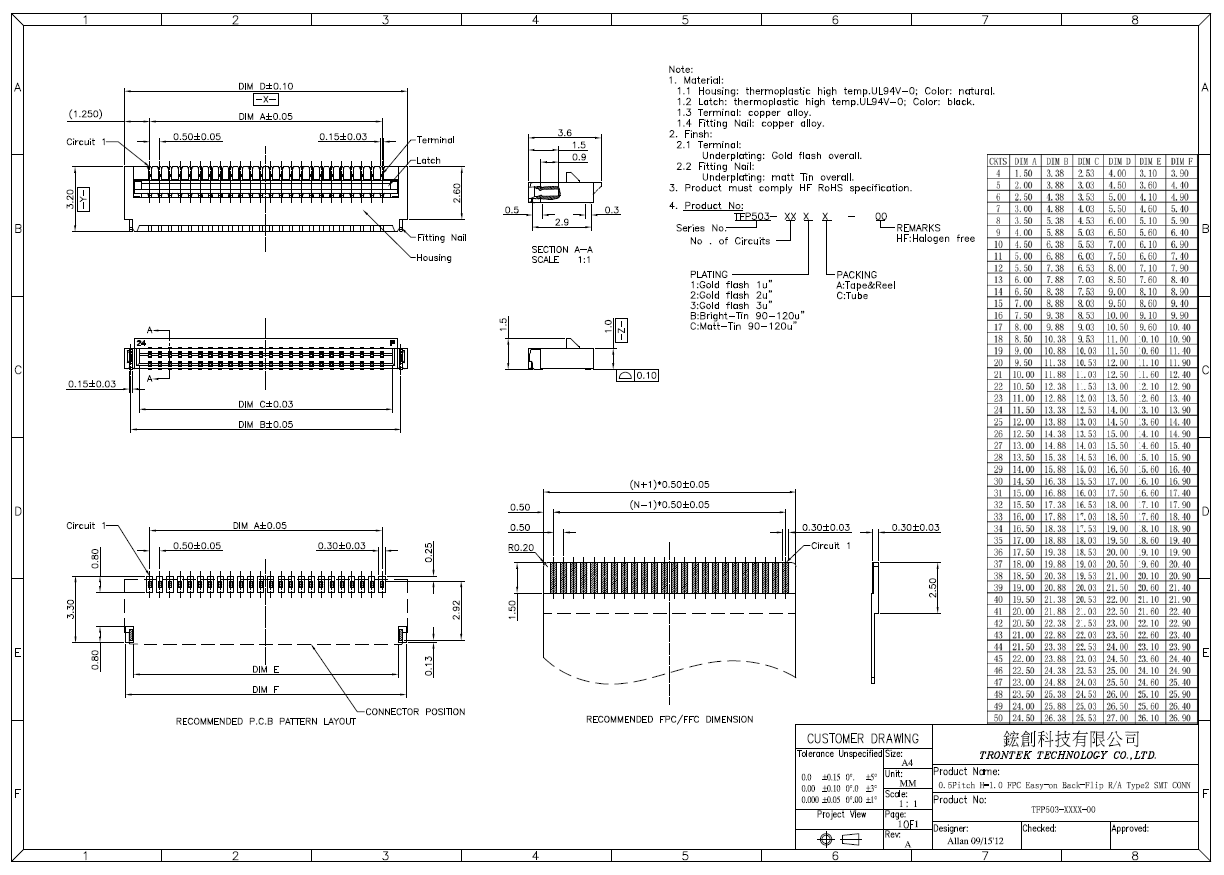

0.5mm Pitch H=1.0 FPC 前掀後壓 Easy-on Back-Flip RA Type(TFP503 Series)
規格Electrical Characteristics: Current rating: 0.4A AC/DC Voltage rating: 50V AC/DC Temperature range: -25~+85℃ Withstand Voltage: 200V AC/Minute Contact Resistance: 20m Max. Insulation resistance: 500M Min. Relative Humidity: 93%+40℃ PIN: 6,7,8,10,12,24,30 PIN 產品規格
