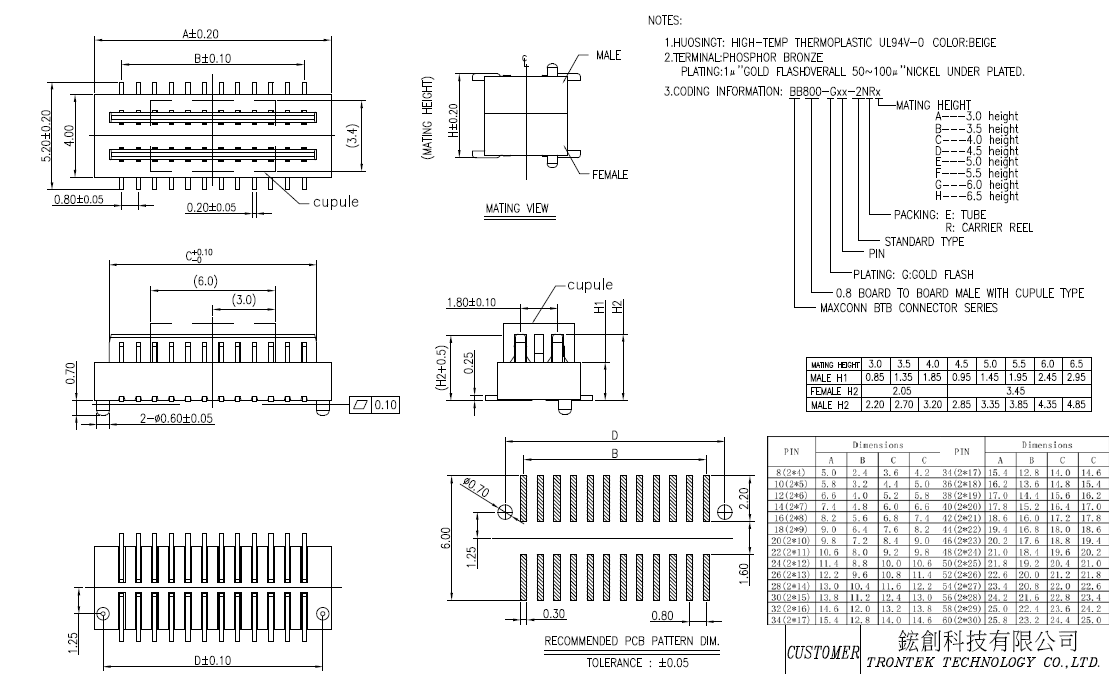

BB800-Gxx-2NRx 0.8mm Board to Board Male(公座) Vertical H=3~6.5mm
規格Material: Insulator: NYLON 9T UL 94-V0 rated. Contact: BRASS Specification: Current rating: 0.5A Max Voltage rating: 50V AC/DC Dielectric withstanding voltage: 250 V(AC) for 1 minute. Contact resistance: 40 mΩ Max. Insulation resistance: 100 MΩ Min at DC 250V. Temperature range: -25℃~+85℃ 產品規格
