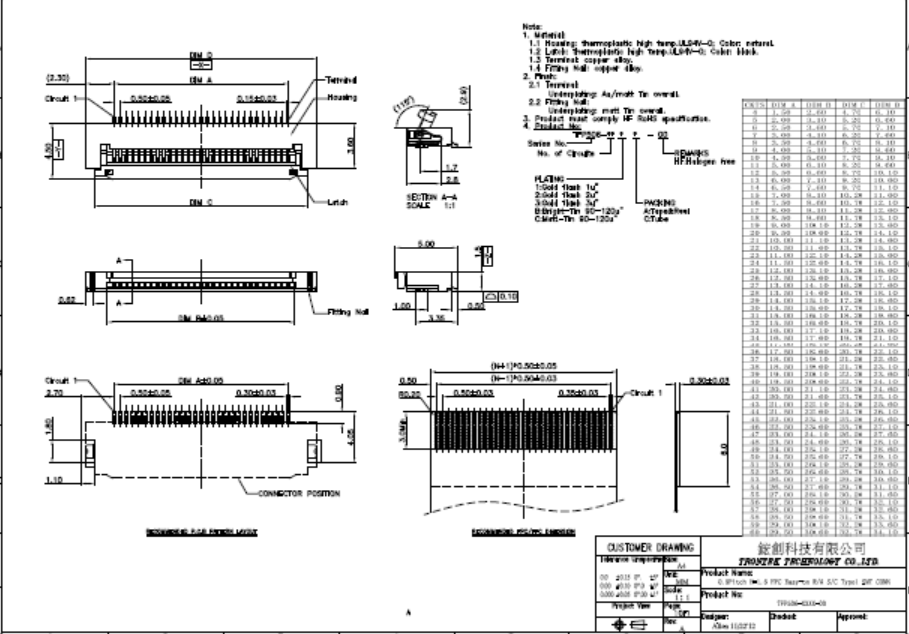

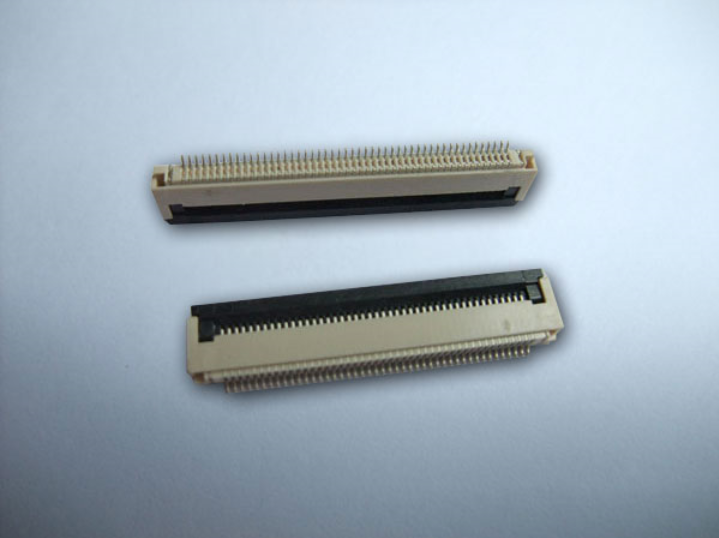

0.5mm Pitch H=1.5 FPC 掀蓋Easy-on RA SMT Contact(TFP506 Series)
規格Electrical Characteristics: Current rating: 0.4A AC/DC Voltage rating: 50V AC/DC Temperature range: -25~+85℃ Withstand Voltage: 200V AC/Minute Contact Resistance: 20m Max. Insulation resistance: 500M Min. Relative Humidity: 93%+40℃ PIN: 6~60 PIN 產品規格
