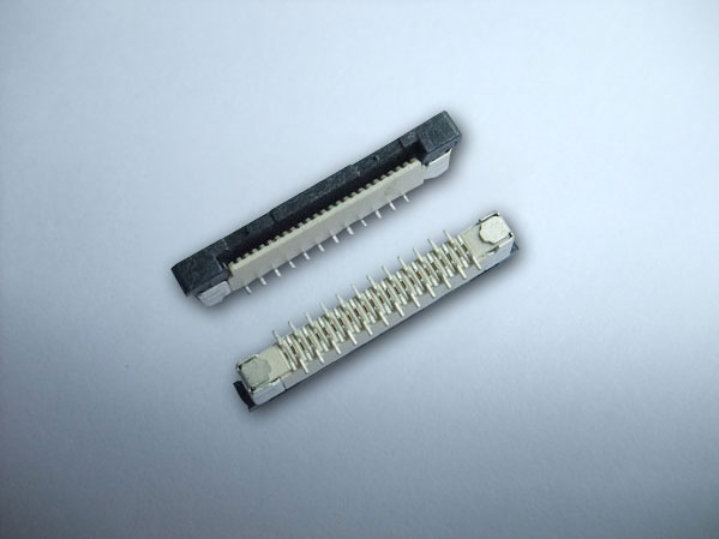

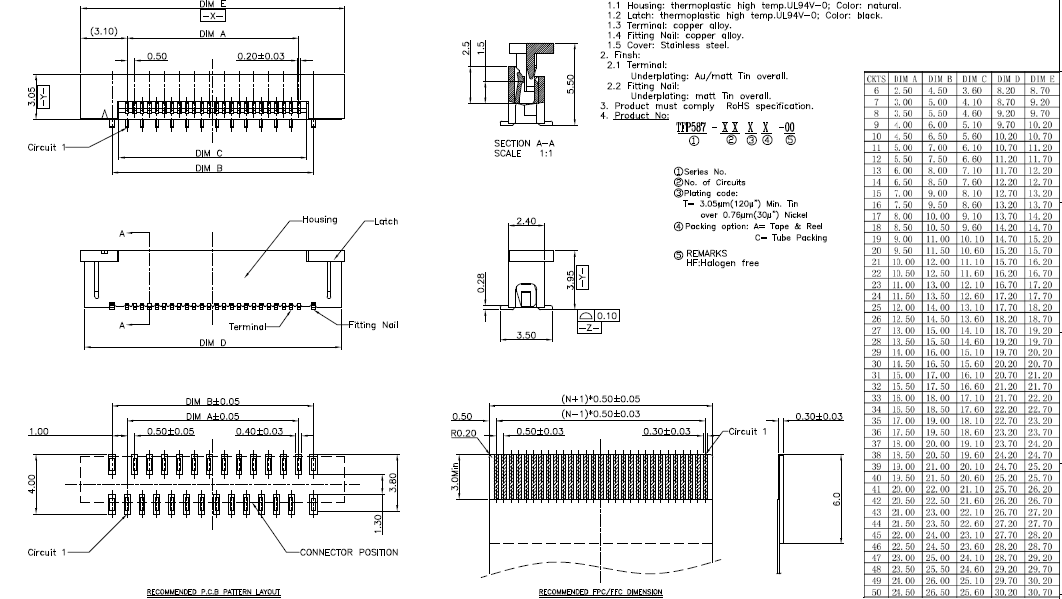

0.5mm Pitch H=4.0 FPC 直立 ZIF SA Normal Type SMT CONN ( TFP587 Series)
規格Electrical Characteristics: Current rating: 0.5A AC/DC Voltage rating: 50V AC/DC Temperature range: -25~+85℃ Withstand Voltage: 200V AC/Minute Contact Resistance: ≦20mΩ. Insulation resistance: ≧500MΩ. Relative Humidity: 93%+40℃ PIN:24,26,30,42 PIN 產品規格
